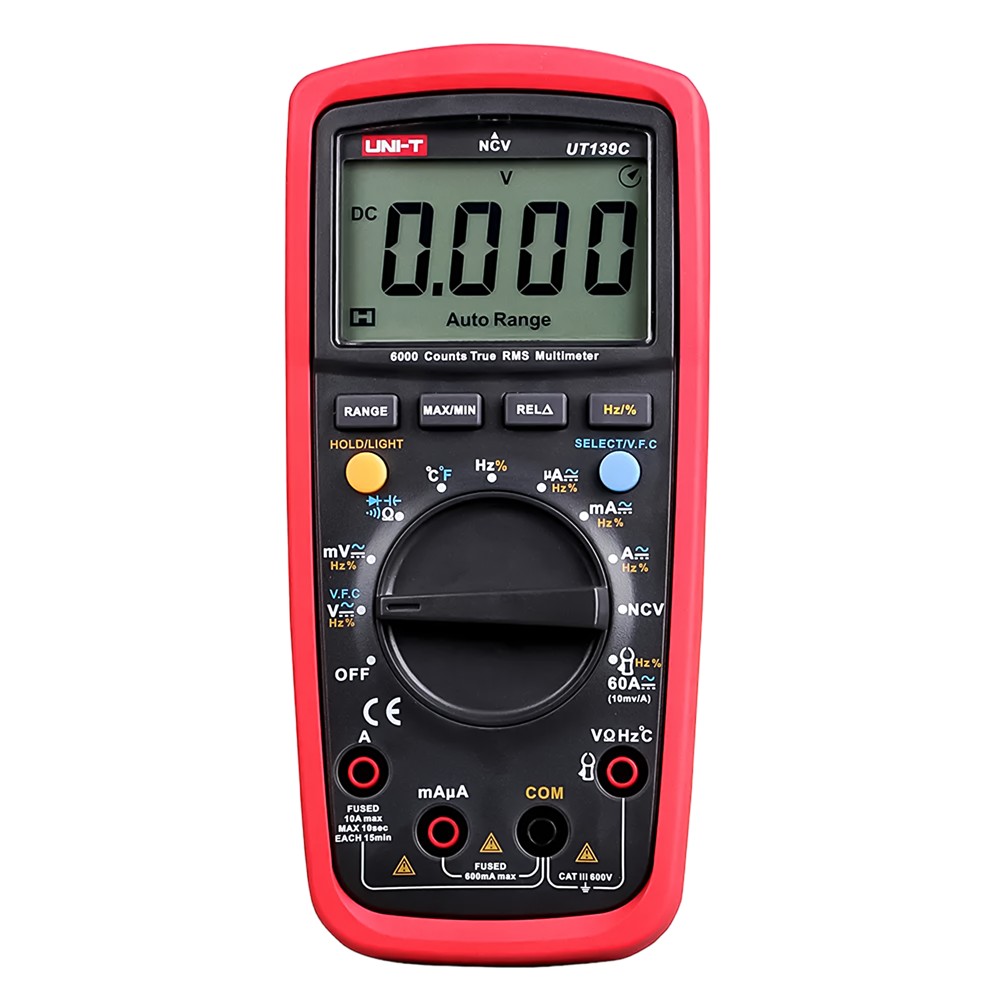

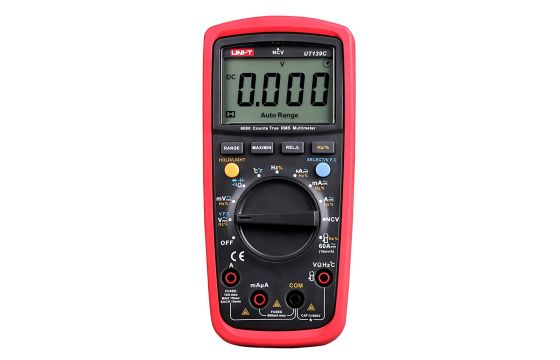

The new UT 139 series from Uni-Trend impresses with its high reliability, modern design, user-friendliness and extensive functionality. The complete series is equipped with a true effective value measurement function (TRMS) and an NCV function (Non contact voltage detection) for non-contact voltage detection.
True RMS measurement
• Varied Frequency (VFC)
• Capacitance measurement up to 100mF
• Current clamp connection for up to 60 A AC/DC (clamp not included)
• Temperature measurement up to 1000°C
• Non-contact voltage test with signal and LED display
• Rubberized holster for rough working conditions and falls from up to 2m
• Surge protection
• Measuring category: CAT III 600V
• Automatic range selection
• Automatic switch-off
Display range: 6000 counts
Basic accuracy: 0.1%
Voltage measurement DC: 0 - 600V DC / ±0.5% +2
Voltage measurement AC: 0 - 600V AC / ±0.8% +3
Current measurement DC: 0 - 10A DC / ±0.8% +2
Current measurement AC: 0 - 10A AC / ±1.0% +3
Resistance measurement: 0 - 60 MOhm / ±0.8% +2
Capacitance measurement: 0 - 99.99mF / ±4.0% +5
Frequency measurement: 10Hz - 10MHz / ±0.1% +4
Temperature measurement: -40 .. +1000°C / ±1.0% +3
LCD display: 58mm x 36mm
Technical specification
Voltage: 600V AC/DC
Type: Digital multimeter
Battery type: 2xAA
Min-max temperature: -40 °C - 1000 °C, -40 °F - 1832 °F
